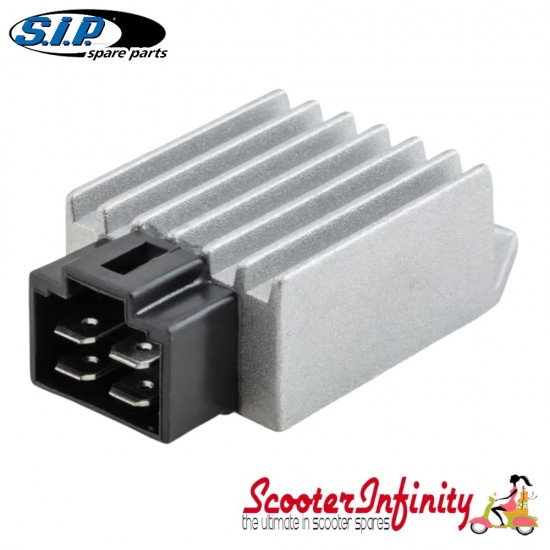

Regulator Voltage SIP - 4 connections 6V AC/DC (Vespa/​Lambretta)

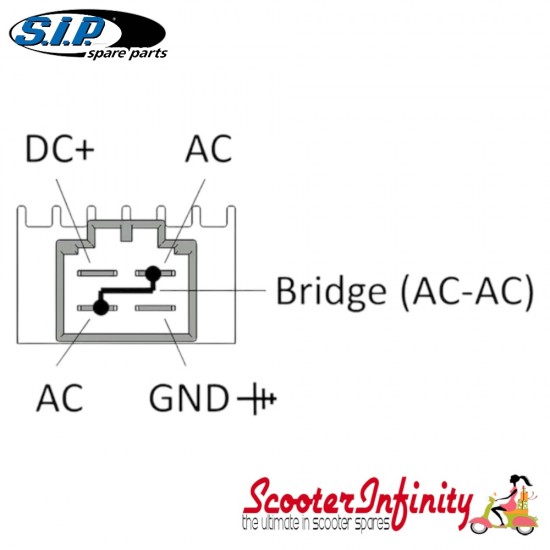

Upgrade your scooter with the centre vespa (aluminium painted, silver ) (vespa px80-200/?pe/?lusso/?'98/?my'11/?t5), for precision fit and lasting performance. A voltage regulator the wiring loom and its connected components from any peaks and overloads in power , so keeping all bulbs intact. It is also responsible for supplying any fitted battery with power and to ensure that it remains loaded when the engine is not running. This particular voltage regulator, with four connections, also serves as a voltage rectifier to convert the alternating current (AC) into 6V/12V direct current (DC) while maintaining a tolerable level. On 6V systems we recommend that the coils be connected in series to power to the system! Connections: AC: bridge the two AC connections, the input and output points on the voltage regulator should be connected to keep the voltage despite varying loads! DC: Output to charge the battery. Earth: Connection to frame/engine casing, voltage regulator/stator plate and wiring loom. Conclusion: A compact voltage regulator for all 6V/12V scooter models that also require a DC power supply to supplement the AC power by the stator/.  - TIP: Do not forget to order a wiring loom connector (# ) and cable adapter. Manufactured by Vespa, for quality and reliability. Ideal for daily use or long-term preservation.


Fitment:
LAMBRETTA Junior 100 100 2T AC 1964-1965
LAMBRETTA Junior 125 125 2T AC 1964-1969
LAMBRETTA Junior 50 50 2T AC 1964-1968
LAMBRETTA LI 125 Serie 1 125 125LI 2T AC 1958-1959
LAMBRETTA LI 125 Serie 2 125 125LI 2T AC 1959-1961
LAMBRETTA LI 125 Serie 3 125 125LI3 2T AC 1961-1967
LAMBRETTA LI 125 Serie 4 125 125LI4 2T AC
LAMBRETTA LI 125 Special Serie 3/LiS 125 125LIS 2T AC 1965-1969
LAMBRETTA LI 150 Serie 1 150 150LI 2T AC 1958-1959
LAMBRETTA LI 150 Serie 2 150 150LI 2T AC 1959-1961
LAMBRETTA LI 150 Serie 3 150 150LI3 2T AC 1962-1967
LAMBRETTA LI 150 Special Serie 3/ LiS 150 150LIS 2T AC 1963-1966
LAMBRETTA LUI 50 C / CL 50 2T AC '68-'69
LAMBRETTA LUI 75 S / SL 75 2T AC '68-'70
LAMBRETTA SX 150 Serie 3/ X 150 Special 150 150SX 2T AC 1966-1969
LAMBRETTA EIBAR LI 125 Serie 2 125 125LI 2T AC 1962-1965
LAMBRETTA EIBAR LI 150 Serie 2 150 150LI 2T AC 1960-1966
LAMBRETTA EIBAR Lince 125 SL125 2T AC '83-'86
LAMBRETTA EIBAR Lince 150 SP150 2T AC '83-'85
LAMBRETTA EIBAR Orbar 125 SL125 2T AC '88
LAMBRETTA EIBAR Scooterlinea / LI3° 125 LI125 2T AC '65-'79
LAMBRETTA EIBAR Scooterlinea / LI3° / Special 150 LI150 2T AC '65-'79
LAMBRETTA EIBAR Serie 80 / Exclusiv 125 LI125 2T AC '82
LAMBRETTA EIBAR Serie 80 / Exclusiv 150 LI150 2T AC '80-'83
MOTOVESPA 125 N 125 VT 2T AC 1959
MOTOVESPA 125 S 125 VTT 2T AC 1959
MOTOVESPA 150 GS 150 04C 2T AC 1967
MOTOVESPA 150 S 150 V13502C 2T AC 1964
MOTOVESPA 150 S 150 VTT 2T AC 1962
MOTOVESPA 150 Sprint 150 04C 2T AC 1966
PIAGGIO APE 50 50 TL1-2T 2T AC '69-'80
PIAGGIO APE 50 FL / FL2 50 TL6T 2T AC '89-
PIAGGIO APE 50 FL3 50 TL5T 2T AC '96-
PIAGGIO APE 50 Mix 50 ZAPC80 2T AC '98-'18
PIAGGIO APE P 50 ( VespaCar ) 50 TL3T 2T AC '80-
PIAGGIO APE TM P 50 / Elestart 50 TL4T 2T AC '85-
VESPA 50 / N 50 V5A1T 2T AC '63-'71
VESPA 50 L 50 V5A1T 2T AC '66-70
VESPA 50 R 50 V5A1T 2T AC '69-'83
VESPA 50 Revival 50 V5R1T 2T AC '90-
VESPA 50 S 50 V5SA1T 2T AC '63-'84 (N)
VESPA 50 Special 50 V5A2T 2T AC '69-'72
VESPA 50 Special 50 V5B1T 2T AC '72-'75
VESPA 50 Special 50 V5B3T 2T AC '75-'83
VESPA 50 Special Elestart 50 V5A3T 2T AC '69-'72
VESPA 50 Special Elestart 50 V5B2T 2T AC '72-'75
VESPA 50 Special Elestart 50 V5B4T 2T AC '75-'76
VESPA 125 125 VM1-2T 2T AC '52-'54 VM1T
VESPA 125 125 VMA1T 2T AC '65-'67
VESPA 125 (T1/125) (D) 125 VNA1-2 2T AC '57-'59
VESPA 125 (T2/125) (D) 125 VNB1-6 2T AC '59-'65 -> VNB5M 033212
VESPA 125 (T2/125) (D) 125 VNB1-6 2T AC '59-'65
VESPA 125 GT / 125 Sprint 125 VNL1-2 2T AC '61-'73 VNL1M
VESPA 125 GT / 125 Sprint 125 VNL1-2 2T AC '61-'73
VESPA 125 GTR 125 VNL2T 2T AC '68-'78 -> 145900
VESPA 125 Primavera 125 VMA2T 2T AC '67-'83
VESPA 125 Primavera ET3 125 VMB1T 2T AC '76-'90
VESPA 125 Super 125 VNC1T 2T AC '65-'69
VESPA 125 TS 125 VNL3T 2T AC '75-'78 -> 18138
VESPA 150 150 VBA1T 2T AC '58-'60
VESPA 150 150 VBB1-2 2T AC '60-'67 -> VBB2M 260197
VESPA 150 150 VBB1-2 2T AC '60-'67 VBB2M 260198 ->
VESPA 150 (T4/150) (D) 150 VGLA-B 2T AC '59-'65
VESPA 150 GL 150 VLA1T 2T AC '62-'64 VLA1M 036755 ->
VESPA 150 GL 150 VLA1T 2T AC '62-'64 VLA1M -> 036754
VESPA 150 Sprint 150 VLB1T 2T AC '65-'74
VESPA 150 Sprint Veloce 150 VLB1T 2T AC '69-'79 -> 294259
VESPA 150 Super 150 VBC1T 2T AC '65-'79 -> 412373
